BIPV

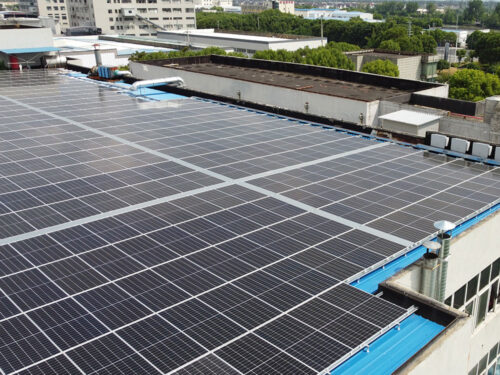

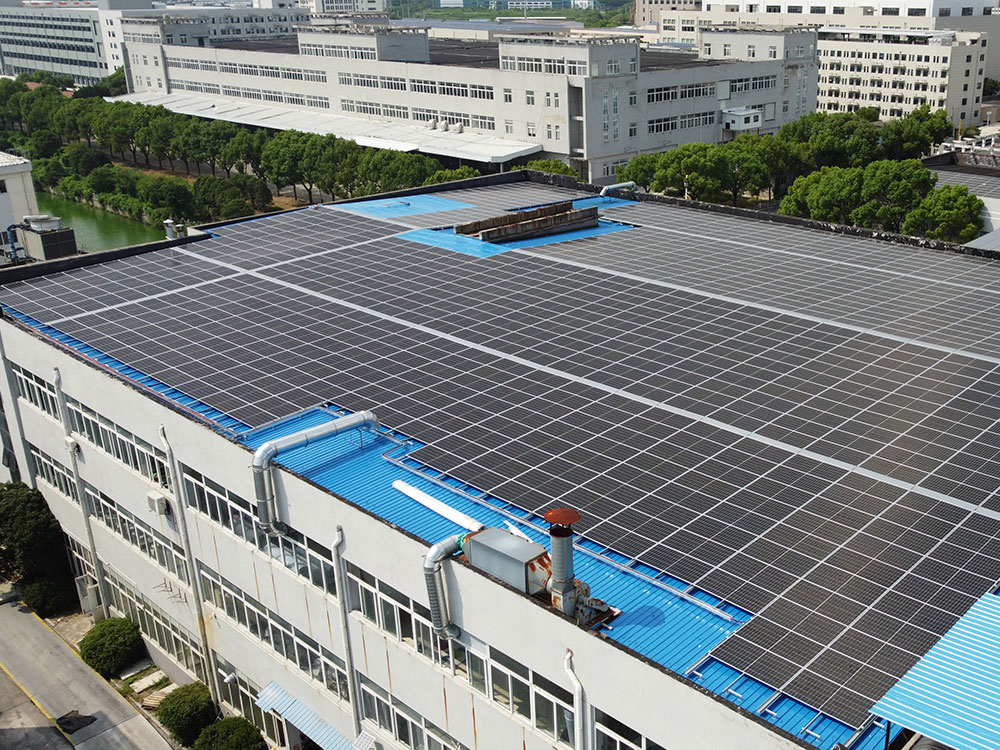

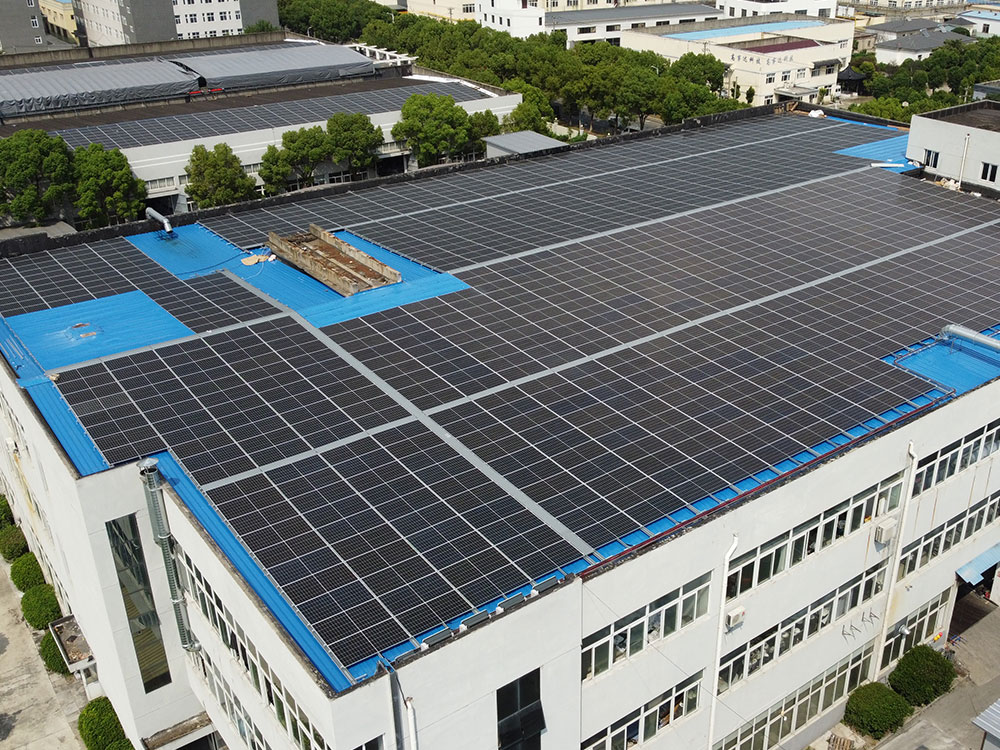

Our company’s BIPV (Building Integrated Photovoltaics) system is designed for standard frame modules, integrating the solar system into building rooftops through a combination of mounting structures and modules. This system perfectly addresses roof waterproofing and solar system maintenance issues.
Installation site
- Building roof
Installation Angle
- 1-10°
PV Module
- Framed or unframed
Module layout
- Vertical or horizontal
Max wind speed
- 45m/s
Color
- Silver Gray
Material
- ≥65um hot dip galvanized Q235B/Q355B steel&≥275g/m^2 Zinc Aluminum Magnesium DX51D/S350GD
Warranty
- 10 years
Standards
- BS6399,JISC 8955,Eurocode 1,DIN1055,AS/NZS 1170 and other standards
Product Introduction
The primary metal material used is galvanized aluminum-magnesium Q235 steel, which is corrosion-resistant and highly durable for outdoor use. It does not require sealing or adhesives, offering excellent corrosion resistance and wind pressure resistance, making it adaptable to various harsh environments and ensuring long-term stable operation.
This type of mounting system provides strong support for the green transformation and sustainable development of industrial buildings, making it an ideal choice for modern industrial structures aiming to reduce energy consumption and emissions.
Component
-
- C-Sink
-
- End-Clamp
-
- Middle-Clamp
-
- M-Sink
-

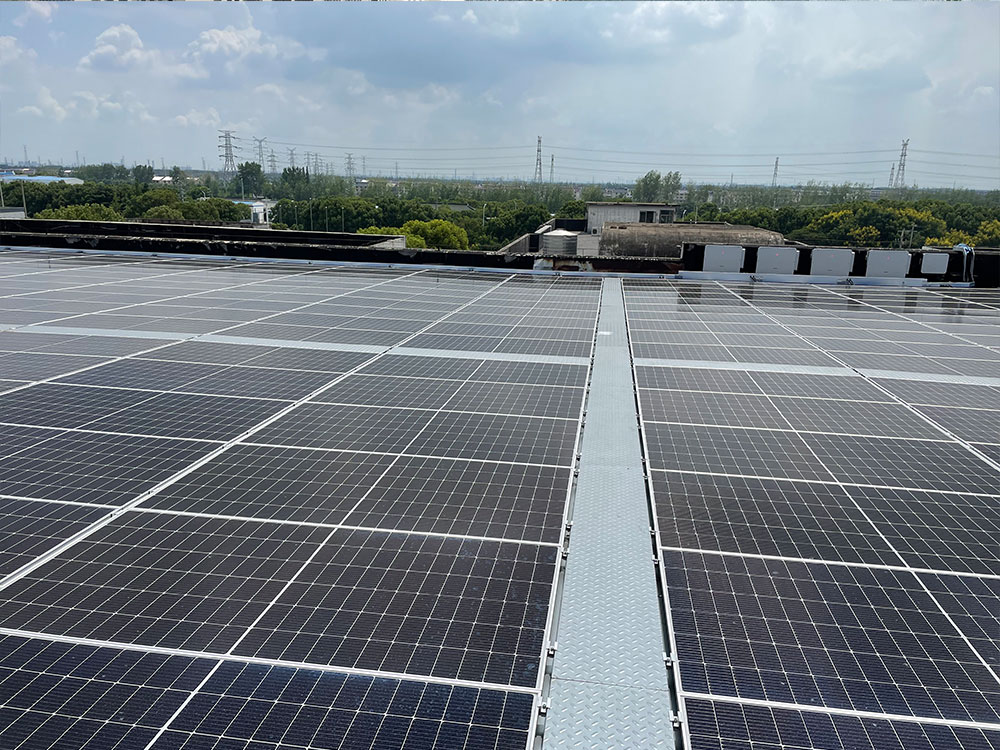

- Ridge-walkway-tread
-
- Supporting-Part
-
- Walkway-platform
