C-Channel Steel Post

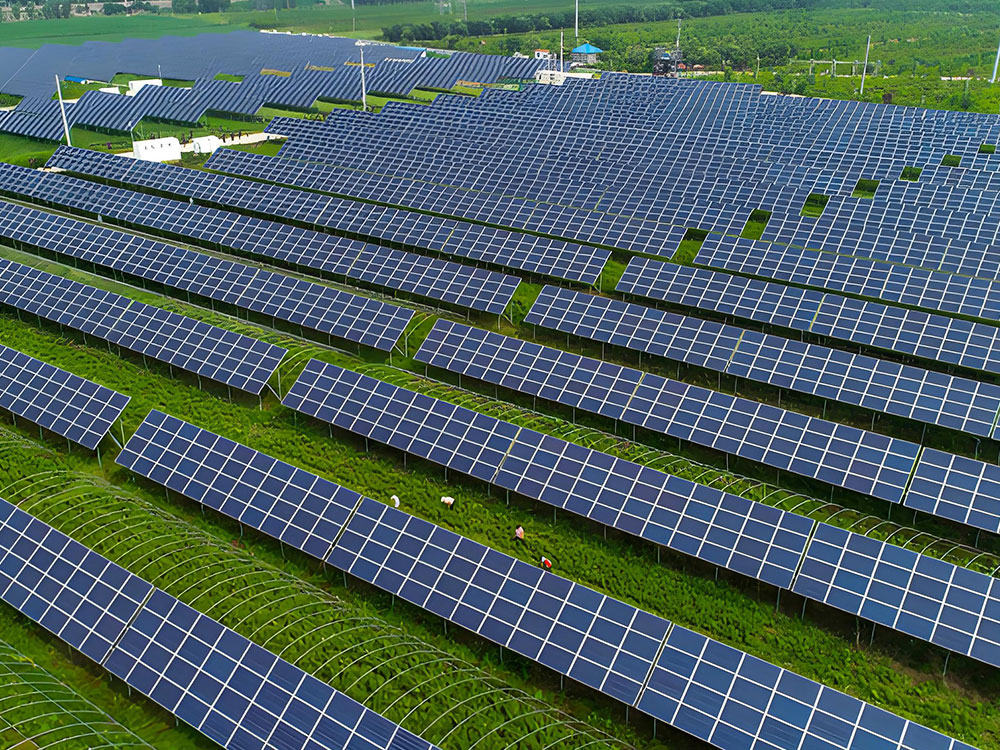

The C-Channel Steel Post direct-insert dual-row solar mounting system is primarily suitable for large-scale ground-mounted photovoltaic power plants, commercial and industrial distributed projects, and agrivoltaic projects in flat terrains.
Installation site
- Open Ground
Installation Angle
- 5-45°
PV Module
- Framed or unframed
Module layout
- Vertical or horizontal
Max wind speed
- 45m/s
Color
- Silver Gray
Material
- ≥275g/m^2 Zinc Aluminum Magnesium DX51D/S350GD steel or ≥65um hot dip galvanized Q235B/Q355B steel
Warranty
- 10 years
Standards
- BS6399,JISC 8955,Eurocode 1,DIN1055,AS/NZS 1170 and other standards
Product Introduction

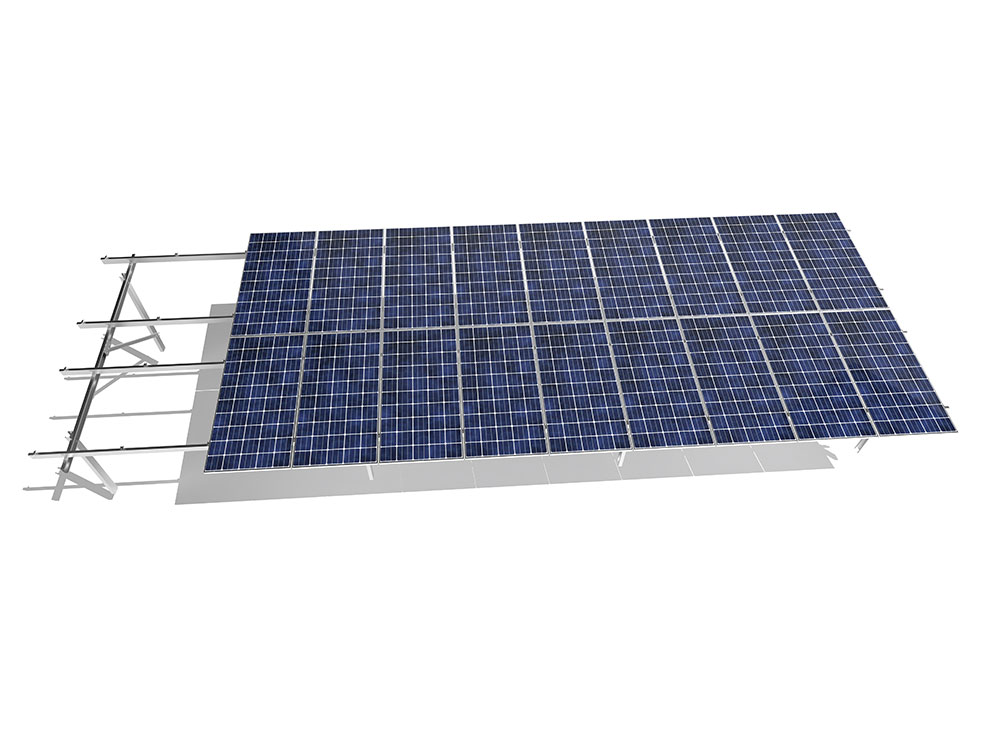

The C-Channel Steel Post direct-insert dual-row solar mounting system features a simple structure and easy installation. Its direct-insert design eliminates the need for complex foundation construction, significantly reducing installation time and costs. The C-Channel Steel Post offer high strength and stability, capable of withstanding harsh weather conditions such as strong winds and snow loads, ensuring long-term stable operation of the system. The dual-row structure is flexible in design, allowing for the adjustment of tilt angles and spacing based on sunlight conditions to maximize power generation efficiency while improving land utilization.
This mounting system utilizes cost-effective materials, resulting in low overall costs and minimal maintenance requirements, with a high return on investment. Additionally, it is environmentally friendly and energy-efficient, aligning with the principles of green and sustainable development. It is an ideal choice for the construction of solar power plants in flat terrains.
Component
-
- Angle Connector
-
- conductive sheet
-
- Z-Steel
-
- Section rail connector
-
- Purlin-support
-
- Middle-Clamp
-
- End-Clamp
-
- C-Steel
