Cable Structure

The system boasts high overall strength, capable of withstanding harsh climatic conditions such as strong winds and snow loads. It also features excellent self-adjusting capabilities, ensuring optimal tilt angles and stability for the photovoltaic modules.

Installation site

  • Open Ground

Installation Angle

  • 5-45°

PV Module

  • Framed or unframed

Module layout

  • Vertical or horizontal

Max wind speed

  • 45m/s

Color

  • Silver Gray

Material

  • prestressed concrete pile& ≥275g/m^2 Zinc Aluminum Magnesium DX51D/S350GD steel or ≥65um hot dip galvanized Q235B/Q355B steel

Warranty

  • 10 years

Standards

  • BS6399,JISC 8955,Eurocode 1,DIN1055,AS/NZS 1170 and other standards

Product Introduction

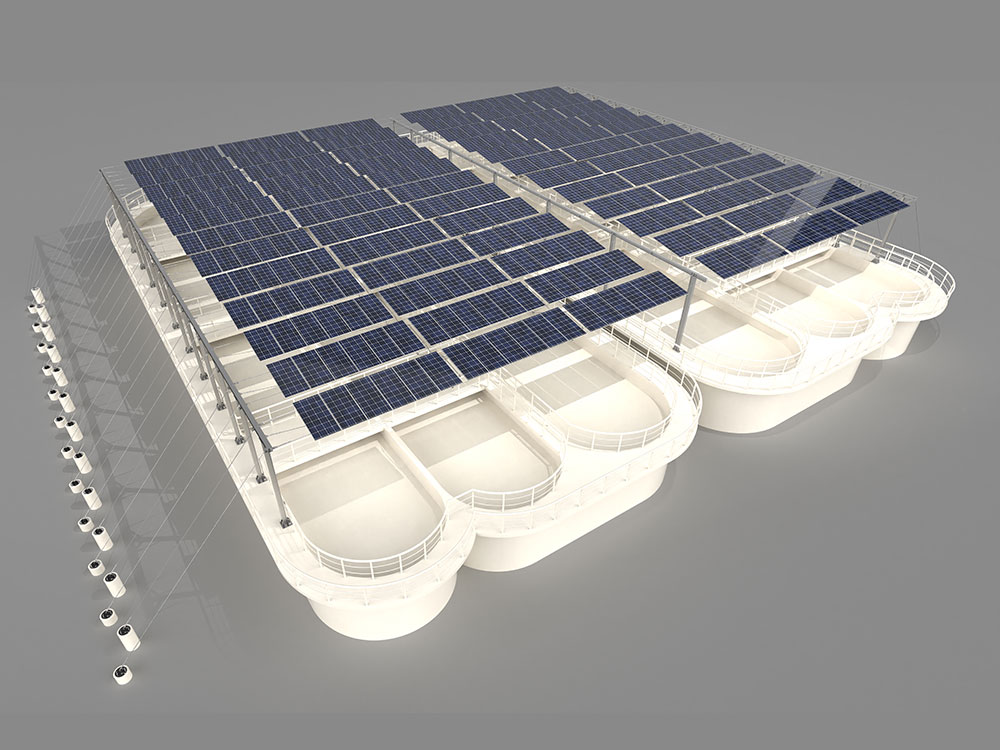

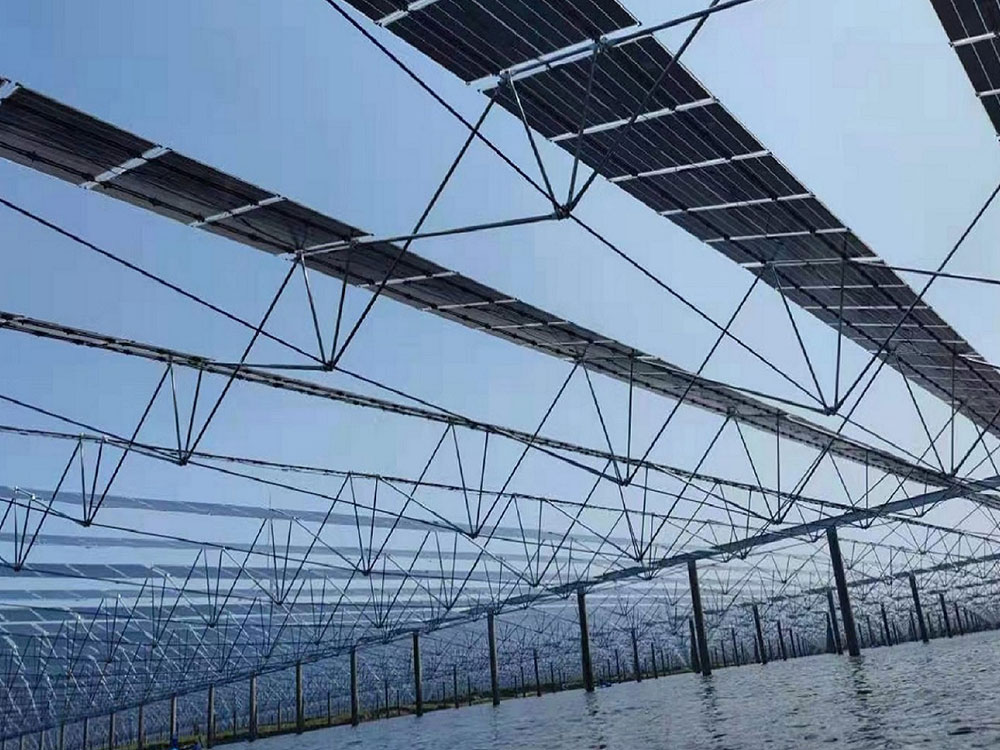

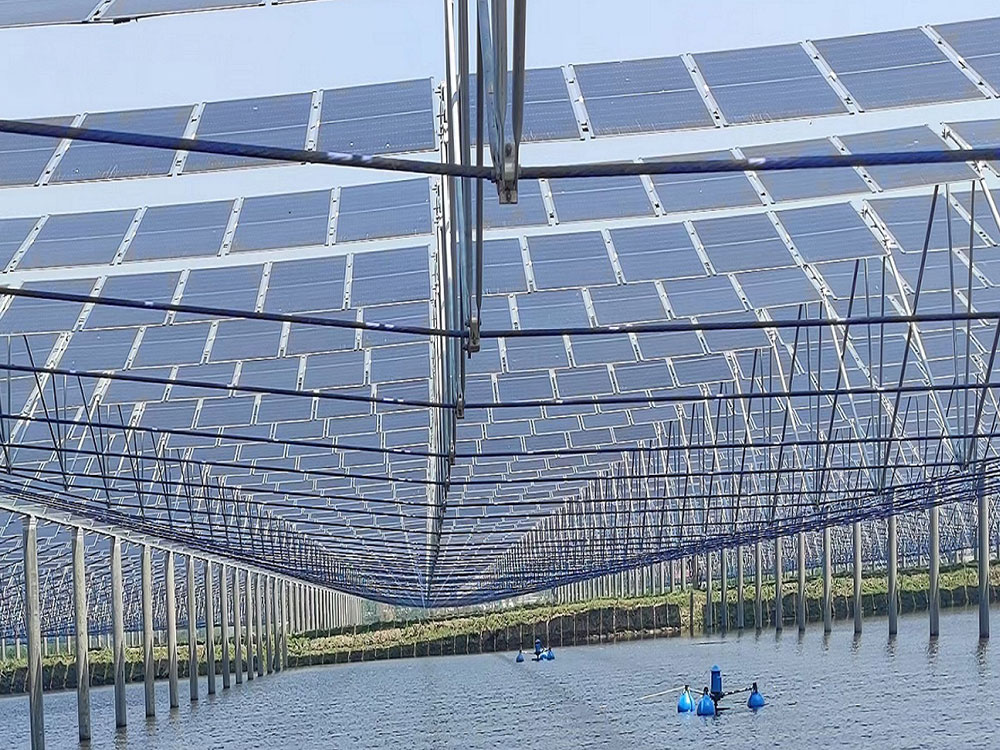

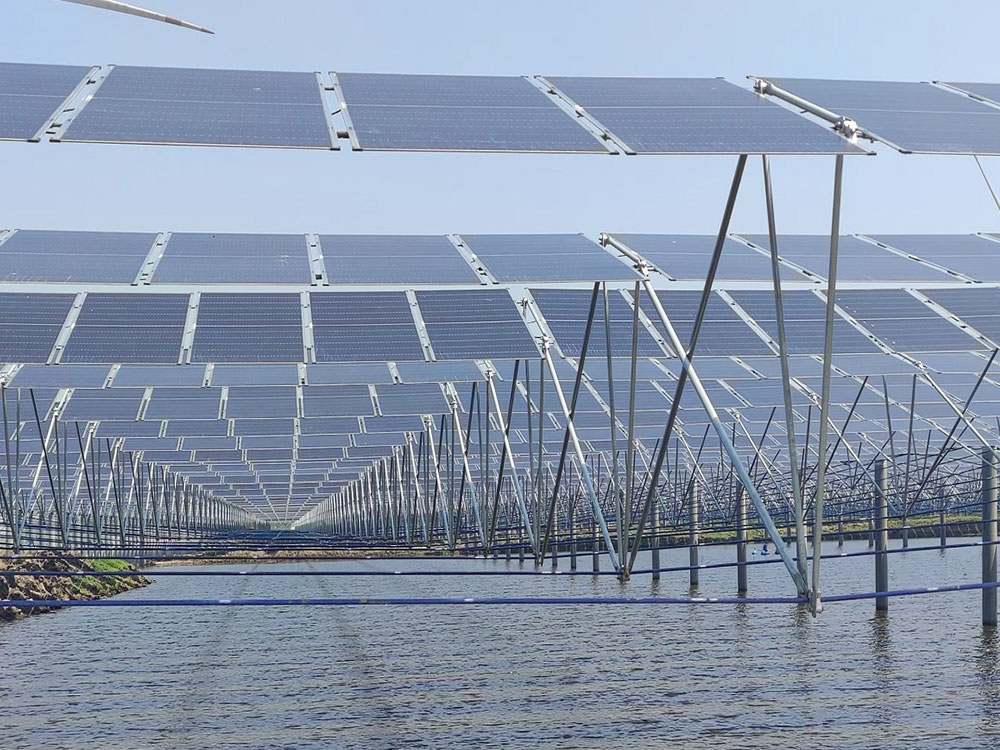

The cable-structure solar mounting system is widely applicable in both ground and wastewater pool scenarios. For ground installations, it is particularly suitable for uneven or complex terrains such as slopes and wastelands. Its flexible design adapts to terrain variations, reducing earthwork and lowering construction difficulty and costs. In wastewater pool scenarios, the cable-structure solar mounting system can be installed directly above the pool, making full use of space and achieving dual benefits of power generation and wastewater treatment.

Component
