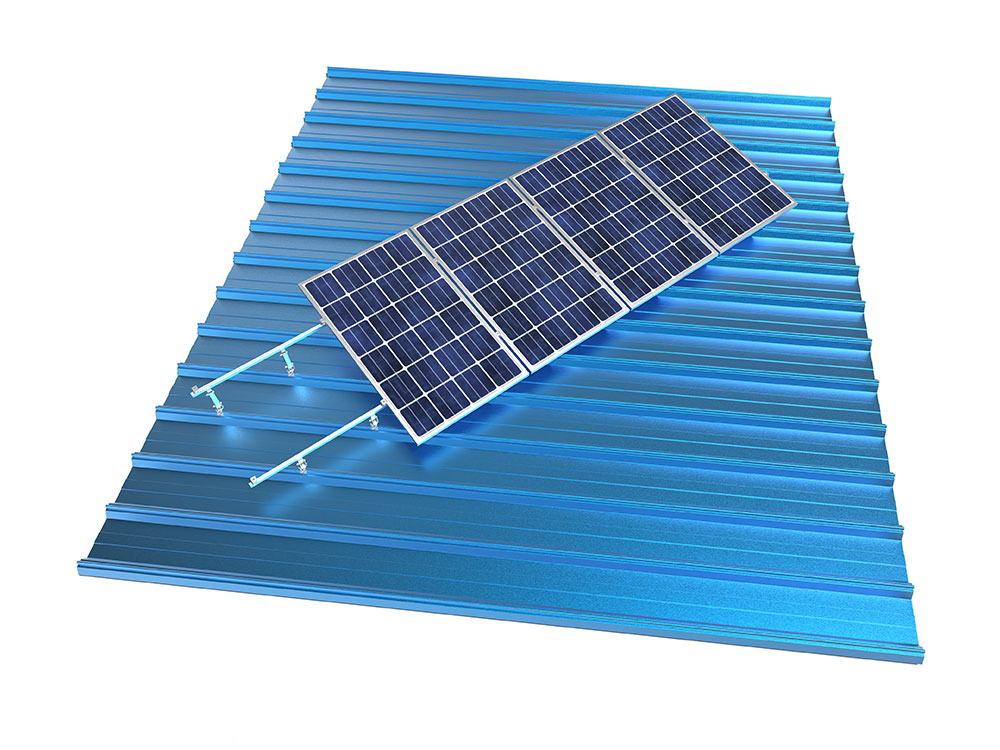

Color Steel Tile Solar Angle Mounting System

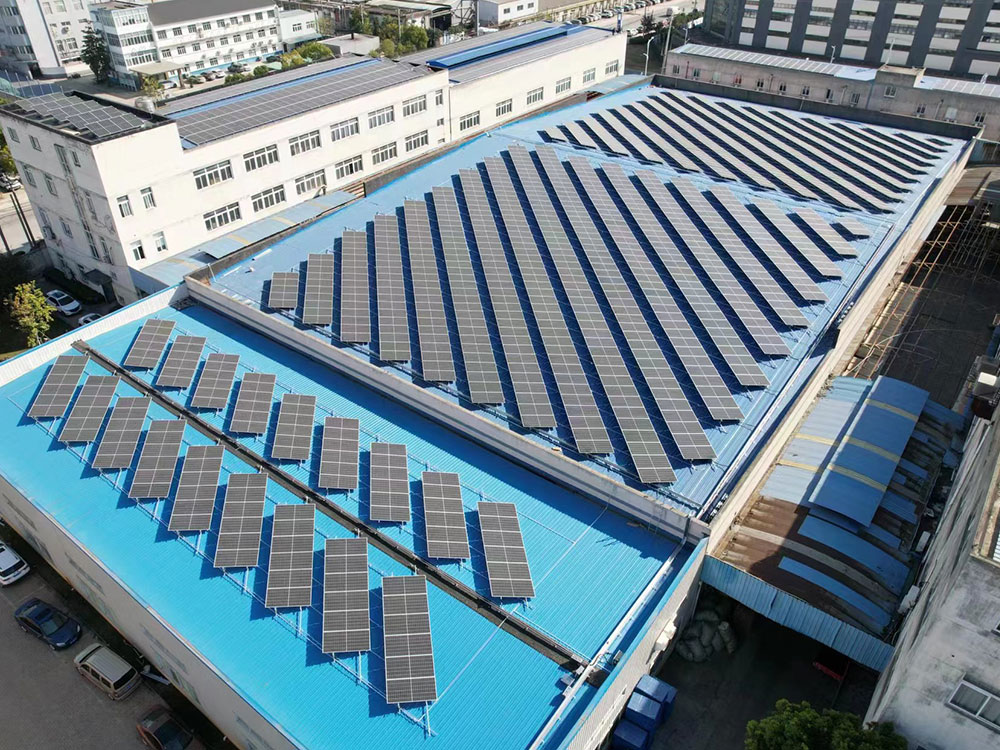

The color steel tile solar angle mounting system is primarily suitable for commercial and industrial buildings, warehouses, and other scenarios, making it ideal for projects that require enhanced power generation efficiency.

Installation site

  • Metal Roof

Installation Angle

  • 5-45°

PV Module

  • Framed

Module layout

  • Vertical

Max wind speed

  • 45m/s

Color

  • Natural or customized

Material

  • Alu 6005 T5,6063 T5 & SUS304

Warranty

  • 10 years

Standards

  • BS6399,JISC 8955,Eurocode 1,DIN1055,AS/NZS 1170 and other standards

Product Introduction

The color steel tile solar angle mounting system is constructed from high-strength aluminum alloy, which is lightweight and highly corrosion-resistant, enabling it to withstand long-term exposure to environmental factors such as rain and UV radiation. The mounting system is secured to the color steel tile roof using specialized clamps, eliminating the need for drilling and preserving the roof’s integrity. Installation is quick, easy, and stable.

The adjustable angle design allows for optimization of the photovoltaic modules’ tilt angle, maximizing sunlight exposure and increasing power generation. The system boasts high overall strength and excellent wind resistance, capable of withstanding external forces such as strong winds and snow loads, ensuring long-term stable operation.

  Component
