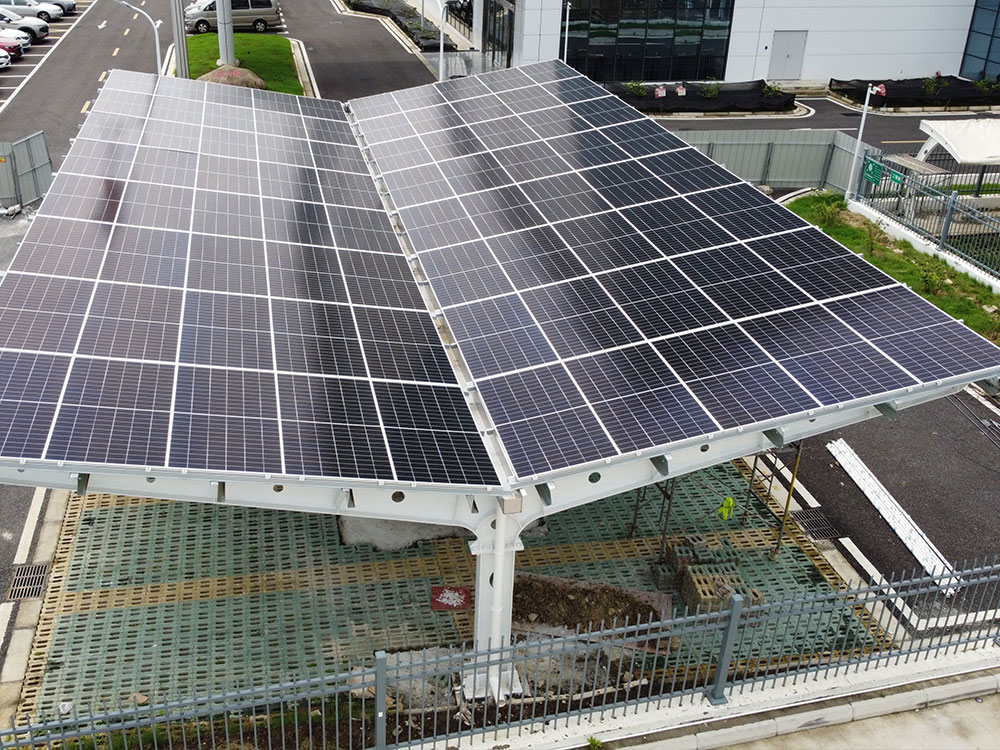

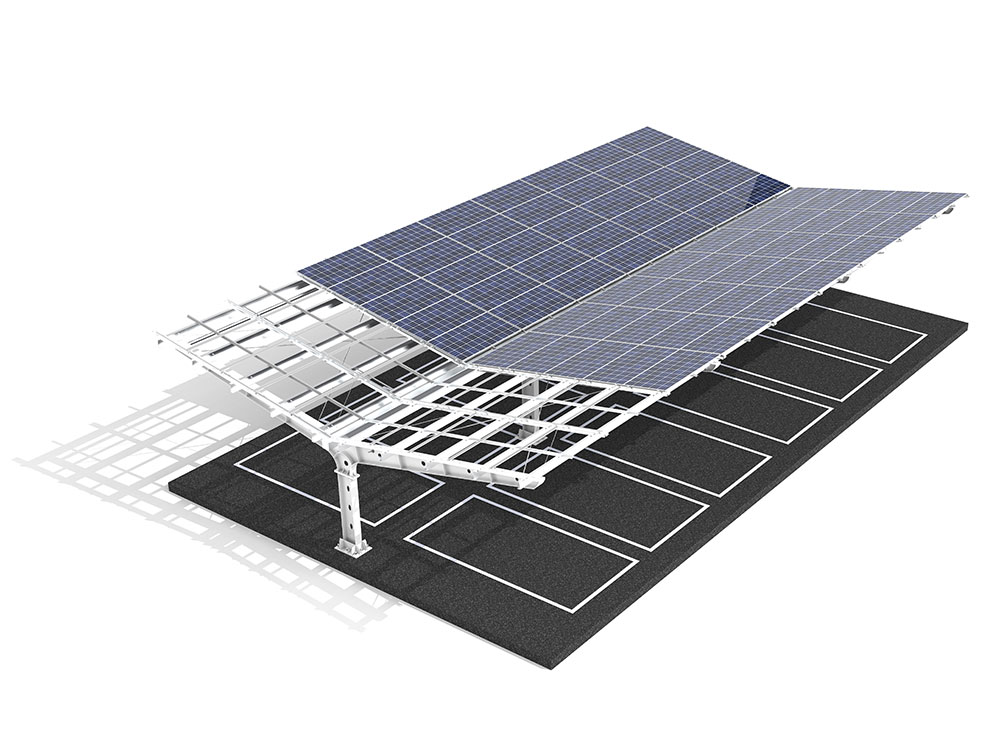

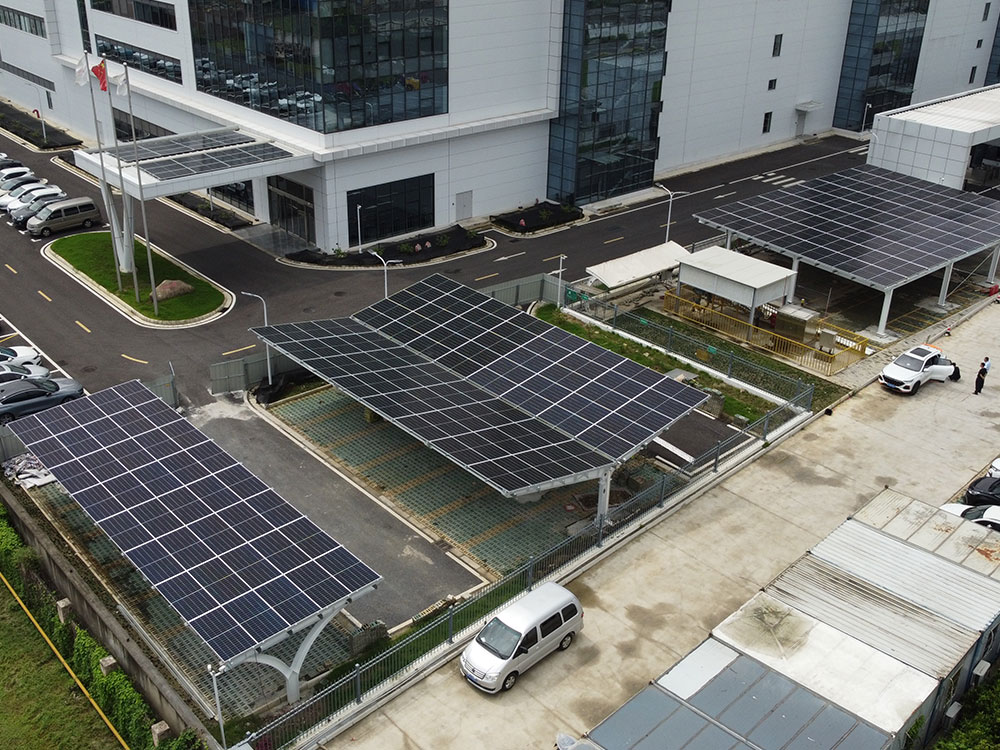

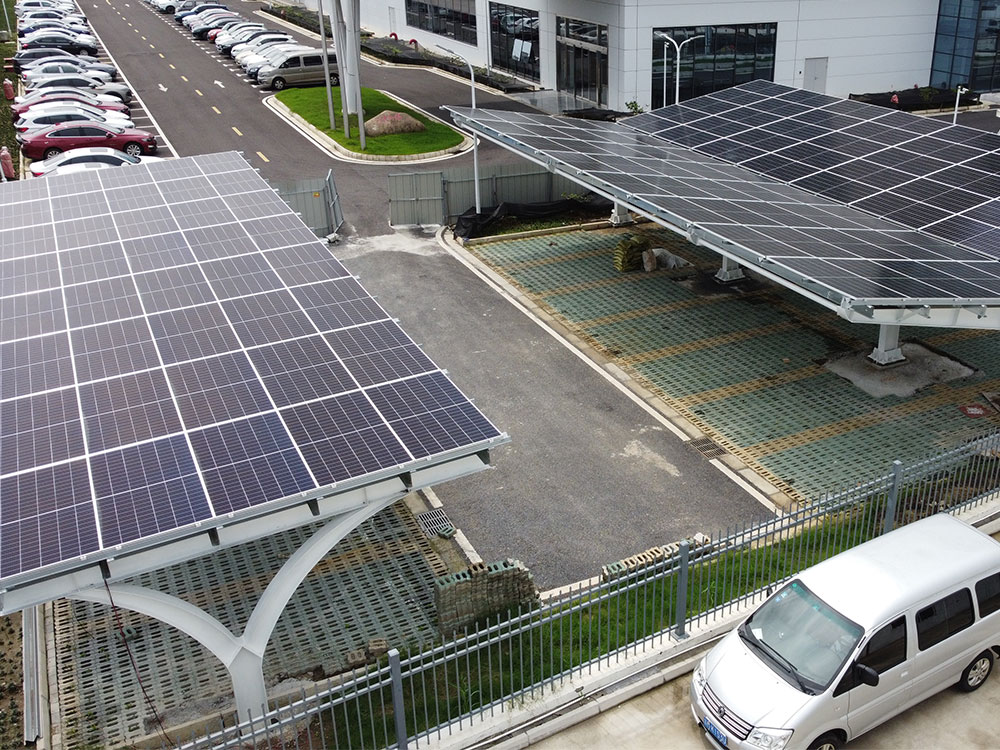

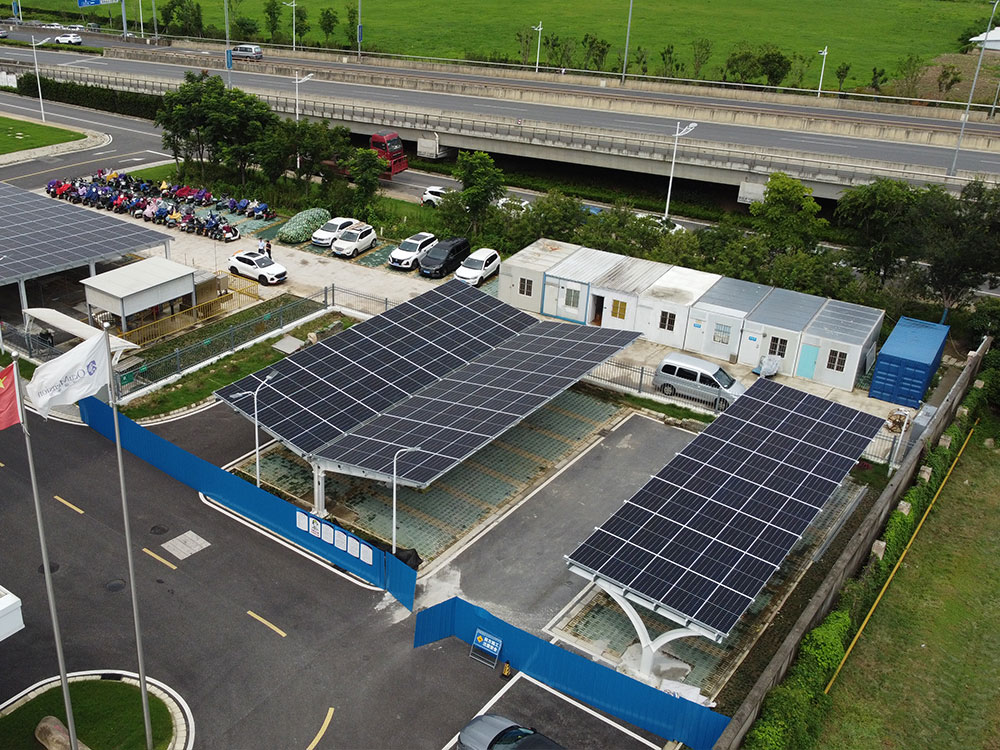

Double Row Carport solar mounting system

Double Row Carport solar mounting system is widely used for open ground. We use Q235 steel, galvanized aluminum magnesium treatment, fastener material could be optional as stainless steel 304 or hot-dip galvanized fasteners. In order to facilitate installation, this system mainly adopts bolt connection, avoiding on-site welding, cutting and processes.

Installation site

  • Ground

Installation Angle

  • 2-10°

PV Module

  • Framed or unframed

Module layout

  • Vertical or horizontal

Max wind speed

  • 45m/s

Color

  • Silver Gray

Material

  • ≥65um hot dip galvanized Q235B/Q355B steel&≥275g/m^2 Zinc Aluminum Magnesium DX51D/S350GD

Warranty

  • 10 years

Standards

  • BS6399,JISC 8955,Eurocode 1,DIN1055,AS/NZS 1170 and other standards
Product Introduction

According to the specific conditions of the project, different carport structures are adopted to meet the requirements of wind and snow load. We have professional waterproof solutions, according to customers’ requirements, can be equipped with waterproof brackets, help customers achieve the best cost on the basis of satisfying mechanical calculations.

    Component
