Flat Roof Solar Mounting System
The flat roof solar mounting system is a widely used, low-cost solution extensively applied in flat roof scenarios, particularly suitable for solar projects on commercial, industrial, and public buildings, as well as residential rooftops. We use hot-dip galvanized aluminum-magnesium Q235 steel as the structural material, which offers excellent corrosion resistance and high strength, ensuring long-term durability against environmental factors such as wind, rain, and UV exposure, and guaranteeing stable system operation.

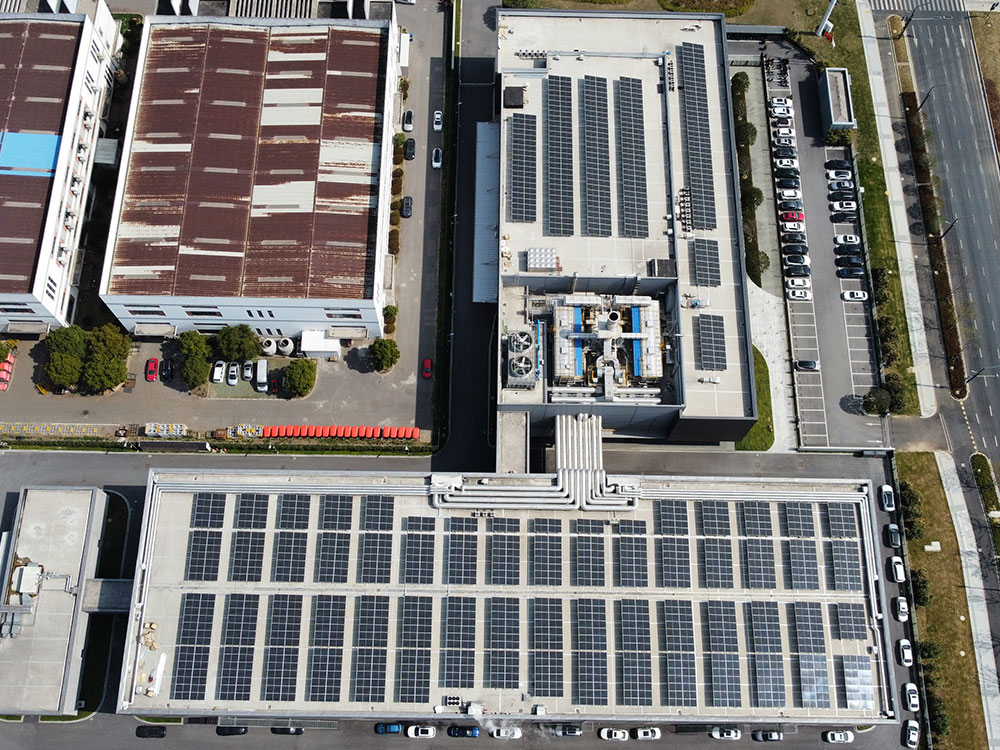

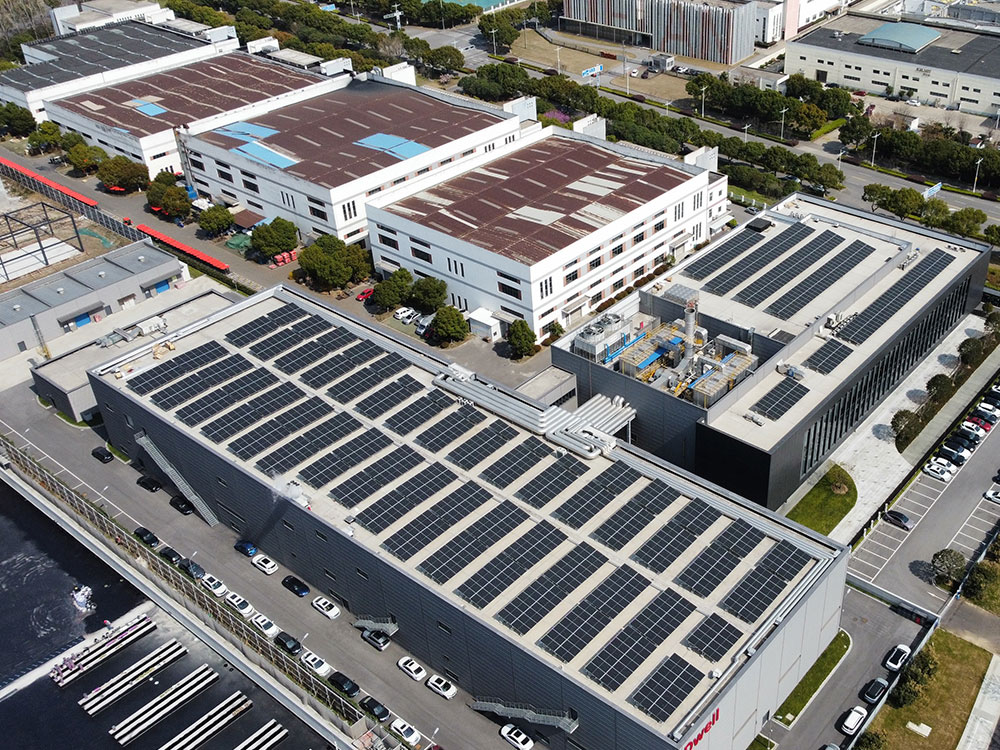

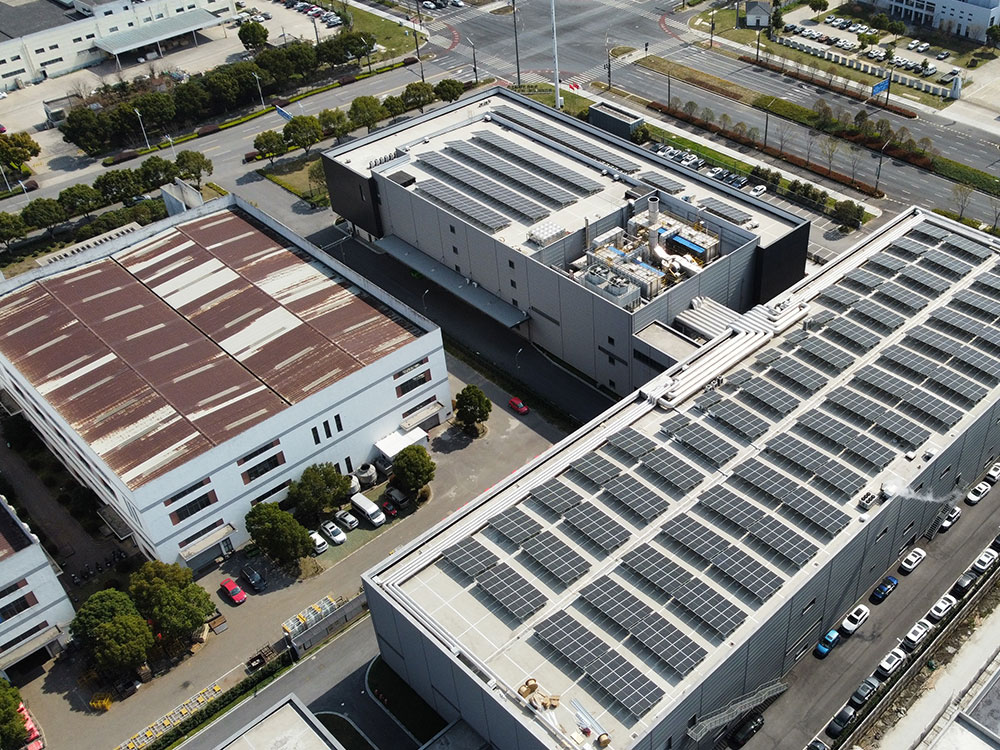

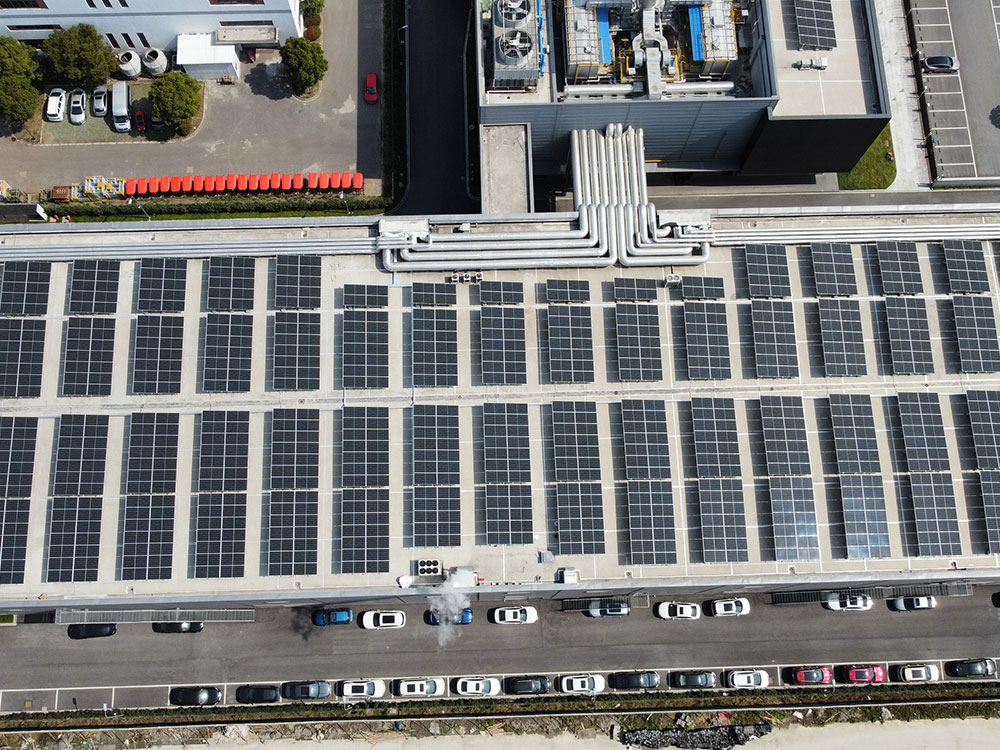

Installation site
- Cement flat Roof
Installation Angle
- 5-45°
PV Module
- Framed or unframed
Module layout
- Vertical or horizontal
Max wind speed
- 45m/s
Color
- Silver Gray
Material
- ≥275g/m^2 Zinc Aluminum Magnesium DX51D/S350GD steel or ≥65um hot dip galvanized Q235B/Q355B steel
Warranty
- 10 years
Standards
- BS6399,JISC 8955,Eurocode 1,DIN1055,AS/NZS 1170 and other standards
Product Introduction

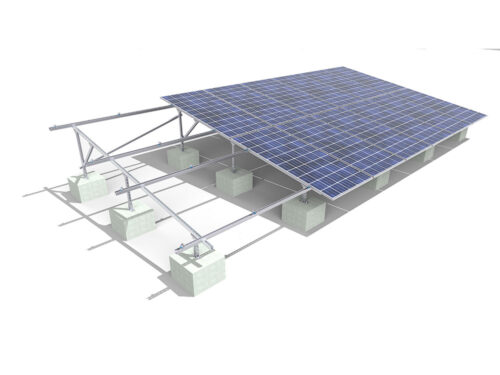

The lightweight design of the material reduces the load pressure on the roof while maintaining a sturdy structure capable of withstanding external forces like strong winds and snow loads, ensuring high system strength and safety. The mounting system allows for flexible tilt angle adjustments to optimize sunlight exposure on photovoltaic modules, enhancing power generation efficiency. Additionally, the cement ballast design facilitates easy disassembly and relocation, making it suitable for temporary or adjustable photovoltaic projects.
This system helps customers achieve optimal cost efficiency while meeting mechanical calculations. The use of cement ballasts as a weighting base eliminates the need for roof drilling, preventing damage to the waterproof layer. Installation is quick and convenient, with minimal impact on the roof structure.
Component
-
- U-shaped-embedded-bolt
-
- triangle-connector
-
- Middle-Clamp
-
- Guide-Rail-U41x62
-
- Guide-Rail-U41x52
-
- Guide-Rail-U41x41
-
- Guide-Rail-U41-connector
-
- End-Clamp
-
- conductive-sheet
-
- 3-hole-base
