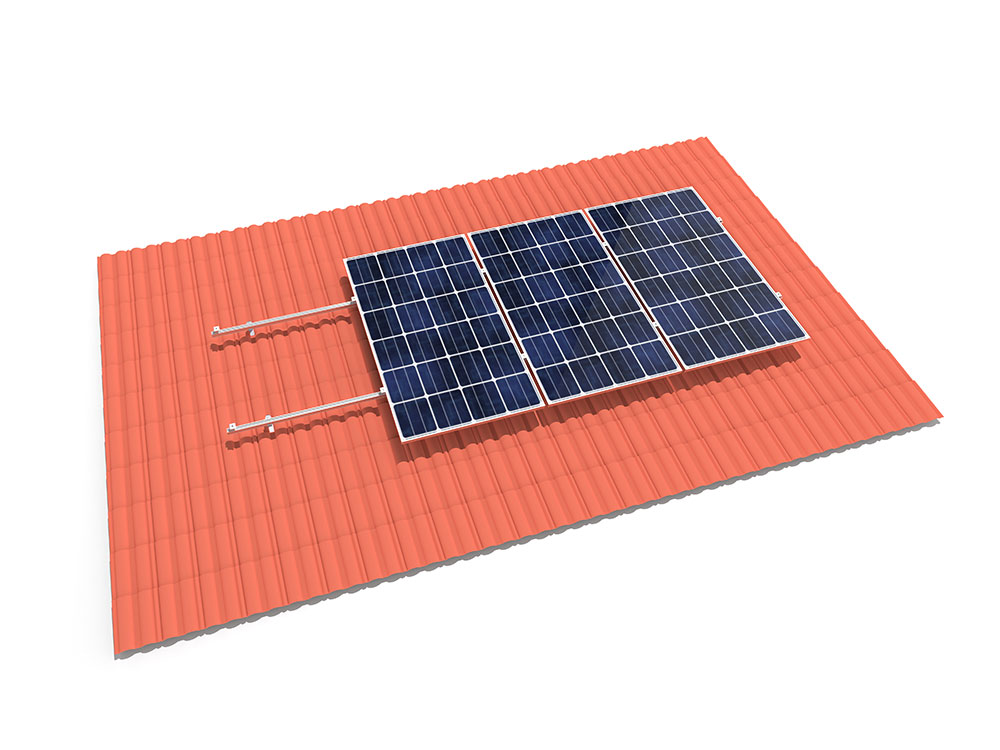

Glazed Tile Solar Mounting System
The glazed tile solar mounting system is primarily suitable for commercial and industrial buildings, residential rooftops, and other concrete or tiled roof scenarios, making it particularly ideal for projects requiring quick installation with minimal impact on the roof structure.
Installation site
- Glazed tiled roof
Installation Angle
- 0°
PV Module
- Framed or unframed
Module layout
- Vertical or horizontal
Max wind speed
- 45m/s
Color
- Natural or customized
Material
- Alu 6005 T5,6063 T5 & SUS304
Warranty
- 10 years
Standards
- BS6399,JISC 8955,Eurocode 1,DIN1055,AS/NZS 1170 and other standards
Product Introduction
The glazed tile solar mounting system is constructed from aluminum alloy 6005 T5 or 6063 T5, with stainless steel 304 used for fasteners and hooks. A variety of hooks are available to suit different roof conditions, helping customers achieve optimal cost efficiency while meeting mechanical calculations. The materials offer excellent corrosion resistance and high strength, ensuring long-term durability against environmental factors such as rain and UV exposure, and guaranteeing stable system operation.
The mounting system is directly secured to the roof using stainless steel hooks, eliminating the need for drilling or complex construction. Installation is quick and easy, without damaging the roof structure. The low-profile design lies close to the roof surface, reducing wind resistance and enhancing wind load performance, while also being capable of withstanding external loads such as snow. The system boasts high overall strength and safety.
Component
-
- End-Clamp
-
- Guide-Rail26x30
-
- Middle-Clamp
-
- Rail-connector
-
- Stainless-steel
