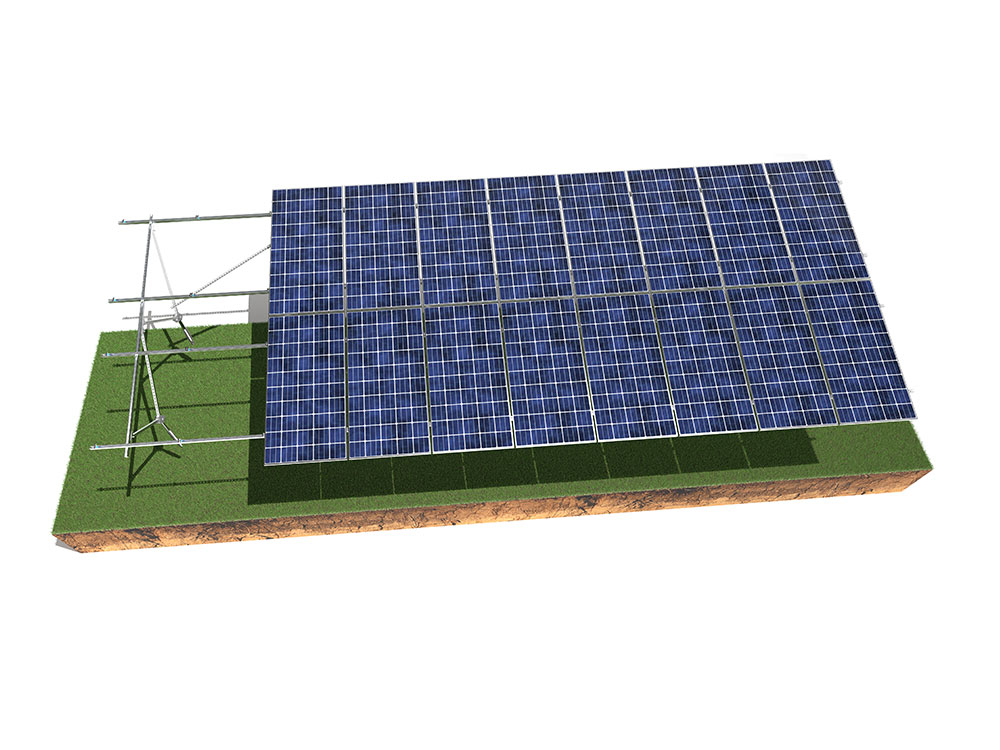

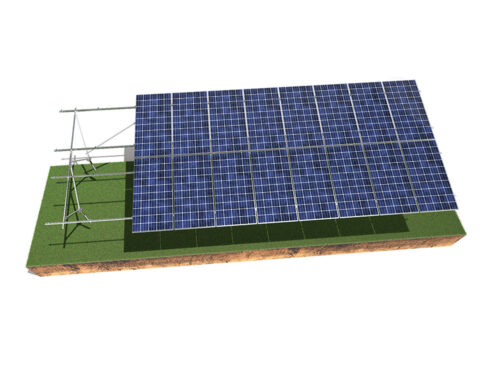

Helical Pile Mounting Systems

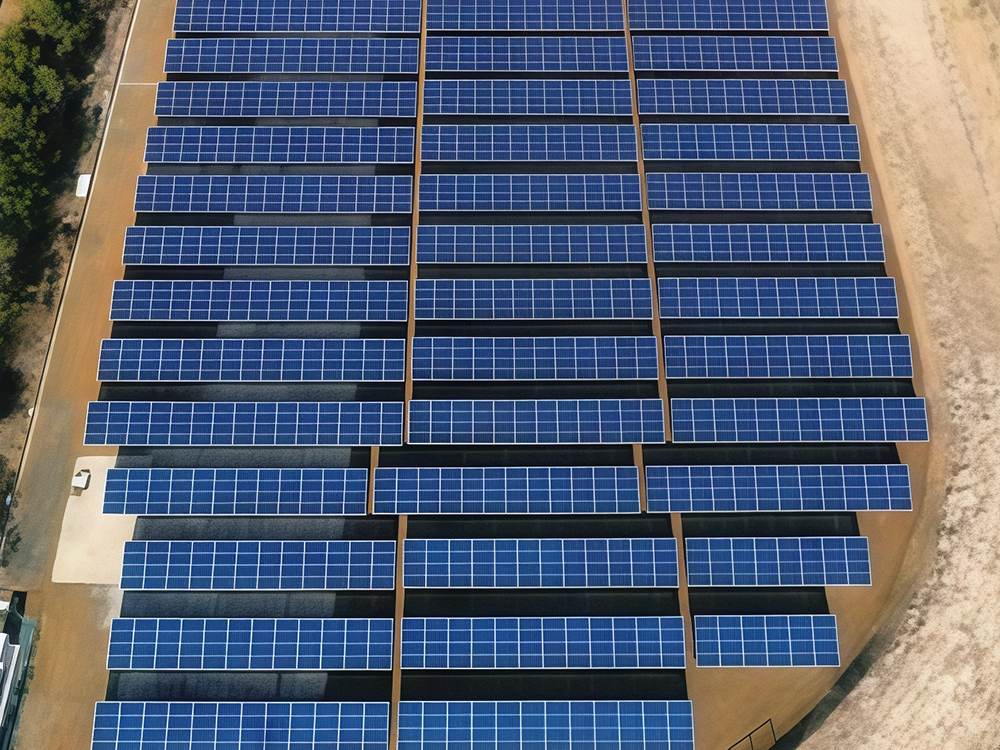

The helical pile solar mounting system is primarily suitable for large-scale ground-mounted solar power plants, distributed solar projects, and agrivoltaic projects in flat terrains.

Installation site

  • Open Ground

Installation Angle

  • 5-45°

PV Module

  • Framed or unframed

Module layout

  • Vertical or horizontal

Max wind speed

  • 45m/s

Color

  • Silver Gray

Material

  • ≥275g/m^2 Zinc Aluminum Magnesium DX51D/S350GD steel or ≥65um hot dip galvanized Q235B/Q355B steel

Warranty

  • 10 years

Standards

  • BS6399,JISC 8955,Eurocode 1,DIN1055,AS/NZS 1170 and other standards

Product Introduction

The helical pile solar mounting system offers several advantages. Its helical pile design eliminates the need for concrete foundations, enabling quick and easy installation, making it ideal for large-scale deployment. Additionally, it minimizes land disturbance, facilitating easier land restoration in the future. The use of galvanized steel or galvanized aluminum-magnesium materials provides excellent corrosion resistance, allowing the system to withstand harsh environments such as humidity and saline-alkali conditions, thereby extending the lifespan of the mounting system.

The helical pile structure boasts strong stability, capable of enduring external forces like strong winds and snow loads, ensuring the system’s safety and reliability. Furthermore, the system allows for flexible adjustments in height and angle to adapt to various terrains and sunlight conditions, maximizing power generation efficiency. It is also cost-effective and environmentally friendly, with low construction costs.

     Component
